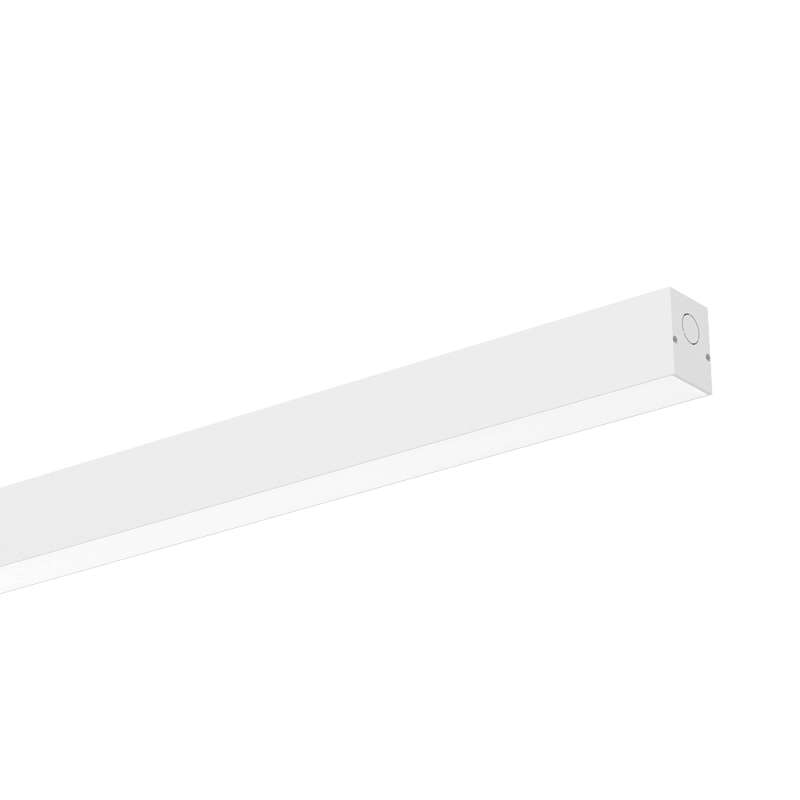

EARNEST
• Easy installation
• Continuous run installation
• Dimmable, 1-10V dimming to 10%-100%
• Max. linkable length: 96’per run @120VAC, 220' per run @277VAC
• Lifetime: 50,000hrs (ta=95°F, 35°C)
• Ta: -4°F~95°F (-20℃~35°C）
• Material: Aluminum alloy
• 7.5W/ft, 758lm/ft
Catalog No. Model Rated Input(VAC) Ra Power(W) Luminous flux (TYP@4000K)lm Beam Angle Length
EARNEST-2430KB-UN EARNEST-L600-277V 120-277 92 15 1500 110° 23.6"(600mm)
EARNEST-2435KB-UN
EARNEST-2440KB-UN
EARNEST-2430KW-UN
EARNEST-2435KW-UN
EARNEST-2440KW-UN
EARNEST-3630KB-UN EARNEST-L925-277V 120-277 92 22.5 2250 110° 35.5”(902.6mm)
EARNEST-3635KB-UN
EARNEST-3640KB-UN
EARNEST-3630KW-UN
EARNEST-3635KW-UN
EARNEST-3640KW-UN
EARNEST-4830KB-UN EARNEST-L1200-277V 120-277 92 30 3000 110° 47.2"(1200mm)
EARNEST-4835KB-UN
EARNEST-4840KB-UN
EARNEST-4830KW-UN
EARNEST-4835KW-UN
EARNEST-4840KW-UN
EARNEST-9530KB-UN EARNEST-L2400-277V 120-277 92 60 6000 110° 94.4"(2392mm)
EARNEST-9535KB-UN
EARNEST-9540KB-UN
EARNEST-9530KW-UN
EARNEST-9535KW-UN
EARNEST-9540KW-UN
