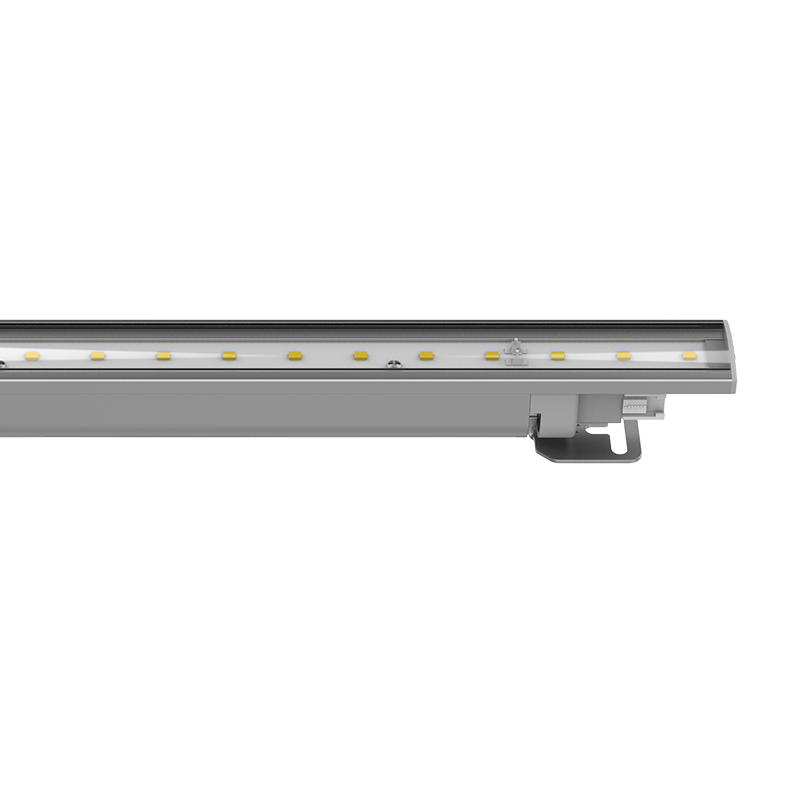

CREST2
• Quick connection
• Dimmable,1-10V dimming to 10%-100%
• Dark spot free at the linking point
• Linkable, max. linkable length: 120' @120VAC, 200' @ 277VAC
• Lockable, precision aiming adjustment: ±75°vertical rotation
• Lifetime: 50,000hrs (ta=95°F, 35°C)
• Ta:-4°F~95°F (-20°C~35°C)
• 5W/ft, 650lm/ft/ft
• Material: Aluminum alloy
Catalog No. Model Rated Input(VAC) Ra Power(W) Luminous flux (TYP@4000K)lm Beam Angle Length
CREST2-1230K CREST2-L300-277V-A 120-277 92 5 575 120° 11.8"(300mm)
CREST2-1235K
CREST2-1240K
CREST2-1230KFC CREST2-L300-277V-AM 120-277 92 5 550 Frost cover 11.8"(300mm)
CREST2-1235KFC
CREST2-1240KFC
CREST2-1230K15 CREST2-L300-277V-AL 120-277 92 5

425@15°/550@30°

15°/30° 11.8"(300mm)
CREST2-1235K15
CREST2-1240K15
CREST2-1230K30
CREST2-1235K30
CREST2-1240K30
CREST2-4830K CREST2-L1200-277V-A 120-277 92 20 2700 110° 47.2"(1200mm)
CREST2-4835K
CREST2-4840K
CREST2-4830KFC CREST2-L1200-277V-AM 120-277 92 20 2400 110° 47.2"(1200mm)
CREST2-4835KFC
CREST2-4840KFC
CREST2-4830K15 CREST2-L1200-277V-AL 120-277 92 20 1900@15°/2400@30° 15°/30° 47.2"(1200mm)
CREST2-4835K15
CREST2-4840K15
CREST2-4830K30
CREST2-4835K30
CREST2-4840K30
